Choosing the right ultrasound probe can have a major impact on image quality, workflow, and diagnostic confidence. Different probes are designed to suit different clinical tasks, with factors such as scanning depth, field of view, and image resolution all influencing which transducer is most appropriate. In everyday practice, clinicians often need to assess both superficial and deeper structures, which is why understanding probe types is an important part of getting the best from any ultrasound system.
In most portable ultrasound systems, users commonly choose between a linear probe or a curvilinear (convex) probe, depending on the anatomy being scanned and how deep the target structure sits beneath the skin.
The good news is that the Mindray TE Air e5M helps simplify this process by combining multiple imaging capabilities into one all-purpose wireless handheld probe. Users can switch between a linear image format for superficial structures and a convex image format for deeper scanning, helping cover a wide range of clinical applications.
What Is a Linear Probe?
A linear probe produces a rectangular image with a flat footprint. It uses higher frequencies, which provide excellent resolution for structures close to the skin surface. This makes it ideal for superficial imaging where fine detail is important.
Linear probes are commonly used for:
- Vascular access and vein mapping
- Thyroid imaging
- Musculoskeletal scans
- Nerve blocks
- Soft tissue assessment
- Small parts imaging
Because the beam travels straight down with a broad near field, the linear format is often preferred when visualising needles, vessels, tendons, or other superficial anatomy.
Here are a few examples of TE Air e5M linear applications, including vascular, thyroid, and musculoskeletal imaging.
What Is a Curvilinear (Convex) Probe?
A curvilinear probe creates a wider fan-shaped image. It uses lower frequencies, allowing greater penetration for deeper organs and broader abdominal views.
Curvilinear probes are commonly used for:
- Abdominal scanning
- Renal imaging
- Obstetrics
- Pelvic scanning
- FAST exams
- Deep lung or pleural assessment
The wider field of view helps visualise larger organs and deeper anatomy within the body.
Here are a few examples of TE Air e5M convex applications, including kidney, fetal cranial, and liver imaging

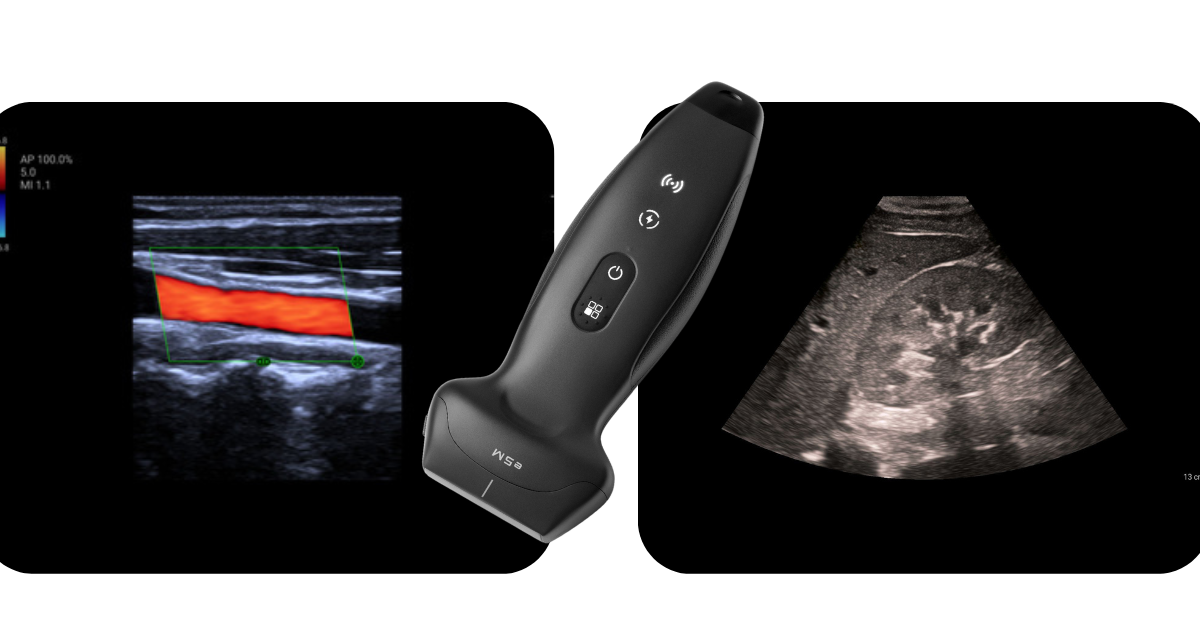

How the TE Air e5M Delivers Both Views in One Probe
The Mindray TE Air e5M is designed as an all-purpose wireless handheld ultrasound system. Instead of carrying multiple probes, users can switch presets and image formats directly within the app.
Using advanced beam steering and image processing technology, the e5M can generate:
- Linear view for superficial and procedural scanning
- Convex view for deeper abdominal, cardiac, lungs and obstetric applications
The e5M supports applications including vascular, abdominal, cardiac, obstetrics, gynecology, urology, musculoskeletal, nerve, small organ imaging and more.
Why This Matters in Real Practice
For busy clinicians, changing probes can slow workflow, especially in emergency departments, wards, clinics, or outreach settings. Carrying a single probe that adapts to the task can improve efficiency, portability, and convenience.
The TE Air e5M helps reduce equipment needs while still providing the flexibility clinicians expect from multiple transducers.
Final Thoughts
Traditionally:
- Choose linear for superficial, high-resolution scanning
- Choose curvilinear for deeper, wider field imaging
With the Mindray TE Air e5M, you don’t always need to choose between two separate probes. One handheld system can provide both formats depending on the clinical need, helping support faster decisions, simplified workflows, and greater portability.
Want to explore more ultrasound transducer types? Check out Mindray’s guide to the different probe designs and their common clinical uses.
